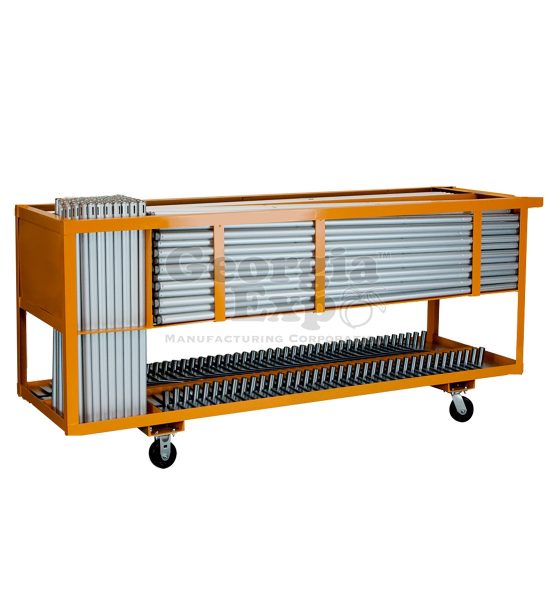

25 Booth Cart

25 Booth Cart

Dimensions:
31″ W x 104″ L x 43″ H

Weight:
320lbs

Capacity:
(40) 1.5″ diam. 3’ & 8’ uprights, (80) 6-10′ drape supports, 70 bases (8”x14”, 14”x16”, 16”x14”)
Rated to 3,600lbs

Materials:
Welded on-site, rugged welded 2″ angle iron steel frame

Castors:
6″ Phenolic Resin Castors, 5″H x 2″W wheel with 1.5″ distance from the top of the plate to top of the wheel, the plate is 4″ x 4.5″
(2) Swivel and (2) rigid
Rated at 900 lbs per castor for a combined rating of at least 3,600 lbs.
*ship separately; must be installed

Finish:
Powder coated, standard finish is Silver Vein, but other powder coat colors are available upon request

Other Info:
Carts are welded and powder coated onsite, so customization to this standard design is available, please contact a sales rep for more information and pricing. 1-800-433-9767
