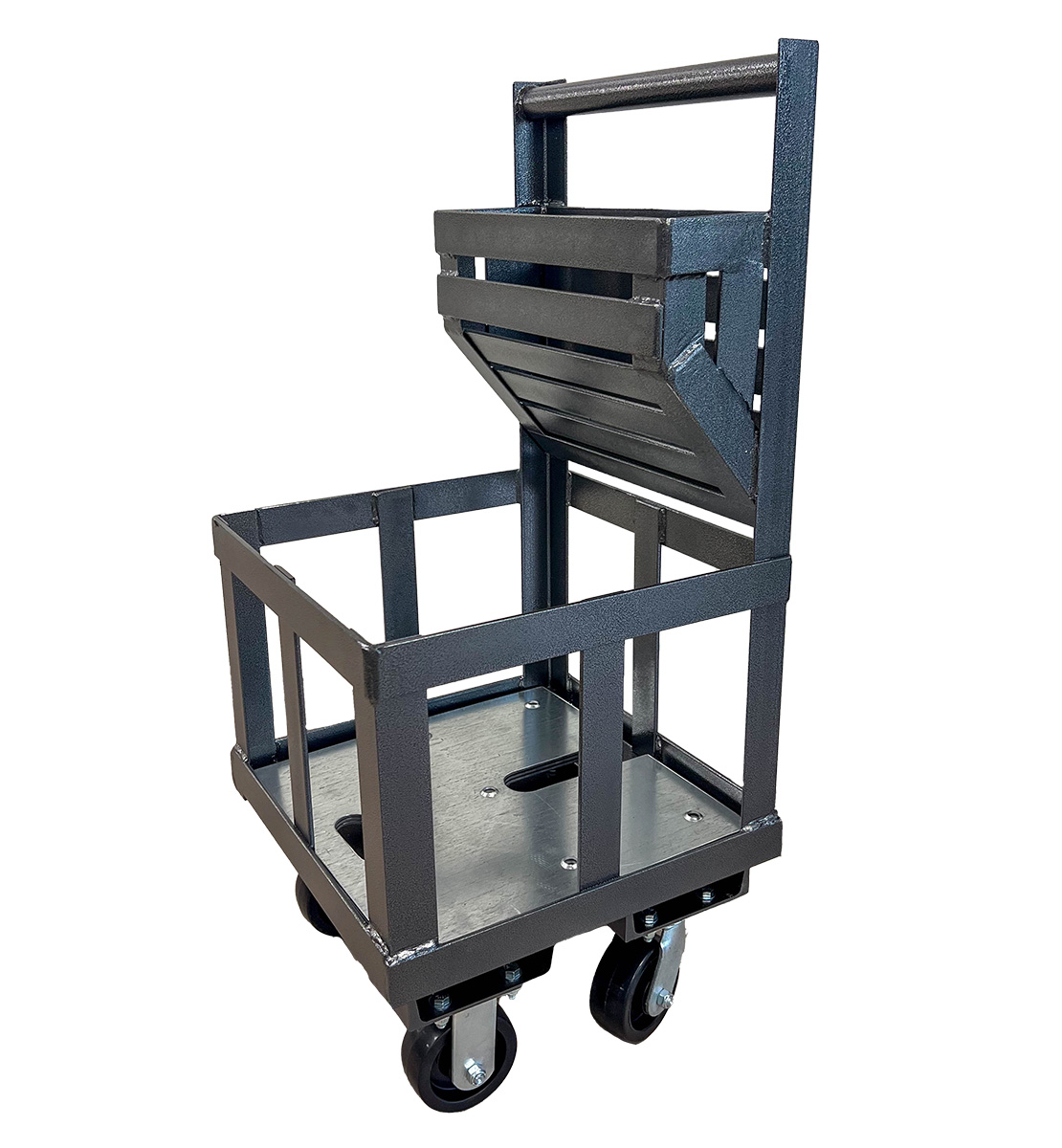

Slip Fit Base Cart – Base Buggy

18” x 18”

Dimensions:
41 3/4″H x 20″W x 20″L (castors installed)

Weight:
100lbs

Capacity:
45pcs 18×18 light duty or 30pcs 18×18 heavy duty
48 1.5” pins or 27 2” pins
Rated to hold up to 1,000lbs

Materials:
Welded on-site, rugged welded angle iron steel frame

Castors:
6″ Phenolic Resin Castors, 5″H x 2″ W wheel with 1.5″ distance from the top of the plate to top of the wheel, the plate is 4″ x 4.5″
(2) Swivel and (2) rigid
Rated at 900 lbs per castor for a combined rating of at least 3,600 lbs.
*ship separately; must be installed

Finish:
Powder coated, standard finish is Silver Vein but other powder coat colors available upon request

Other Info:
Welded and powder coated onsite so customization to this standard design is available, please contact a sales rep for more information and pricing. 1-800-433-9767

24” x 24”

Dimensions:
41 3/4″H x 26 1/4″W x 26 1/4″L (castors installed)

Weight:
100lbs

Capacity:
30pcs 24×24 light duty or 15pcs 24×24 heavy duty
64 1.5” pins or 36 2” pins
Rated to hold up to 1,000lbs

Materials:
Welded on-site, rugged welded angle iron steel frame

Castors:
6″ Phenolic Resin Castors, 5″H x 2″W wheel with 1.5″ distance from the top of the plate to top of the wheel, the plate is 4″ x 4.5″
(2) Swivel and (2) rigid
Rated at 900 lbs per castor for a combined rating of at least 3,600 lbs.
*ship separately; must be installed

Finish:
Powder coated, standard finish is Silver Vein but other powder coat colors available upon request

Other Info:
Welded and powder coated onsite, so customization to this standard design is available, please contact a sales rep for more information and pricing. 1-800-433-9767
